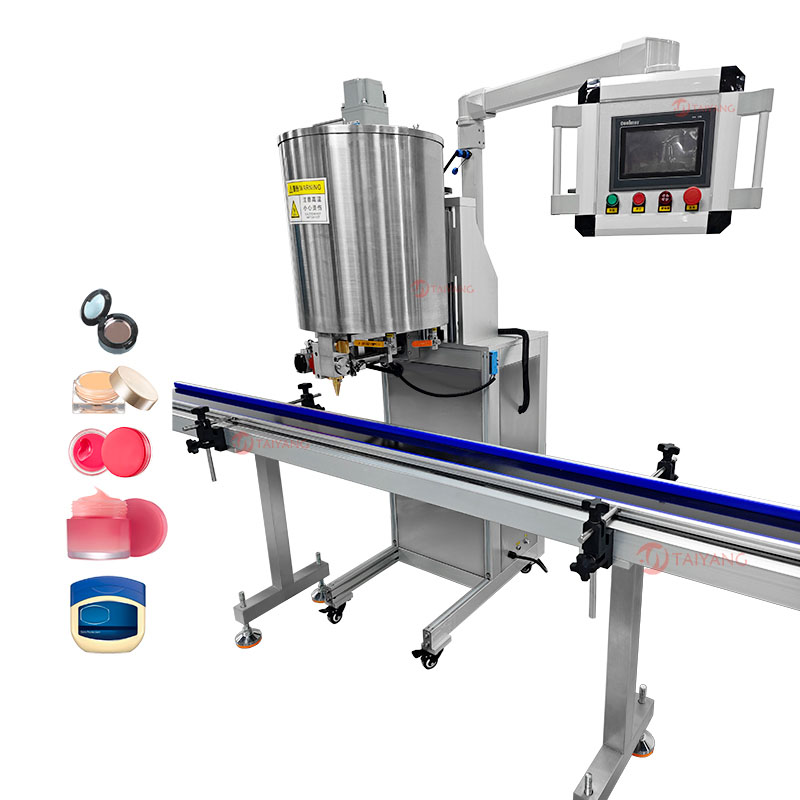

Piston Quantitative Heating Filling Machine

Taiyang Machinery, a prominent and reputable supplier of filling machines in China, has carved a niche in the field of filling and packing machinery through years of dedication and expertise. Our Piston quantitative heating filling machine, which is highly esteemed in the industry for its rapid filling speed, exceptional efficiency, and versatility across various applications, effectively caters to the diverse needs of numerous industries.

Send Inquiry

Product Description

This Taiyang Piston quantitative heating filling machine is equipped with an efficient heating system in the equipment hopper. This not only improves the filling accuracy, but also makes the product more evenly distributed in the container. For small-volume cosmetic products that need to be heated, such as vaseline, lip mask, concealer, etc., due to their texture characteristics, they may have high viscosity at room temperature and even partially solidify at room temperature. The heating function of this Taiyang Piston quantitative heating filling machine plays a key role.The temperature regulation of this Taiyang Piston quantitative heating filling machine is very precise, and the heating temperature can be flexibly adjusted according to the characteristics and filling requirements of different products.
Whether in a professional cosmetics manufacturer or a daily chemical product manufacturer, this Taiyang Piston quantitative heating filling machine is a powerful assistant for filling products such as vaseline, lip mask, concealer, pearl cream, etc.that require heating. Taiyang machinery provides reliable equipment guarantee for high-quality product production.

Technical Parameter

Model:	TY-2401
Hopper:	30 L
Filling capacity:	1-20 ml（Customizable）
Filling speed:	20-50 BPM
Filling accuracy:	±0.1 %
Dimension:	1040x840x1620mm
Weight:	80KG
Power supply:	4KW,220V, 50/60Hz
Material:	SUS304/316

Performance And Features

1.The use of interlayer heating increases the heating area of the raw materials and effectively controls the heating temperature of the raw materials.
2.Automatic PLC control system, easy setting parameters on HMI.
3.The filling speed is fast and the filling accuracy is very high; the stability is good, and the brand servo motor is used for individual control; the barrel capacity is 30L to reduce the number of refills.
4.Using a speed-adjustable motor, it can effectively control the stirring speed, with high efficiency and wide application range.
5.The motor and stirring rod are connected with snaps for easy disassembly and cleaning.

Application

Taiyang Piston quantitative heating filling machine is widely used in the filling process of small-volume cosmetics and skin care products: such as lip masks, vaseline, body balm, concealer powder cream, aluminum pan lipstick, blush cream, pearl cream, pour-over lipstick and other heated paste products.

Product details

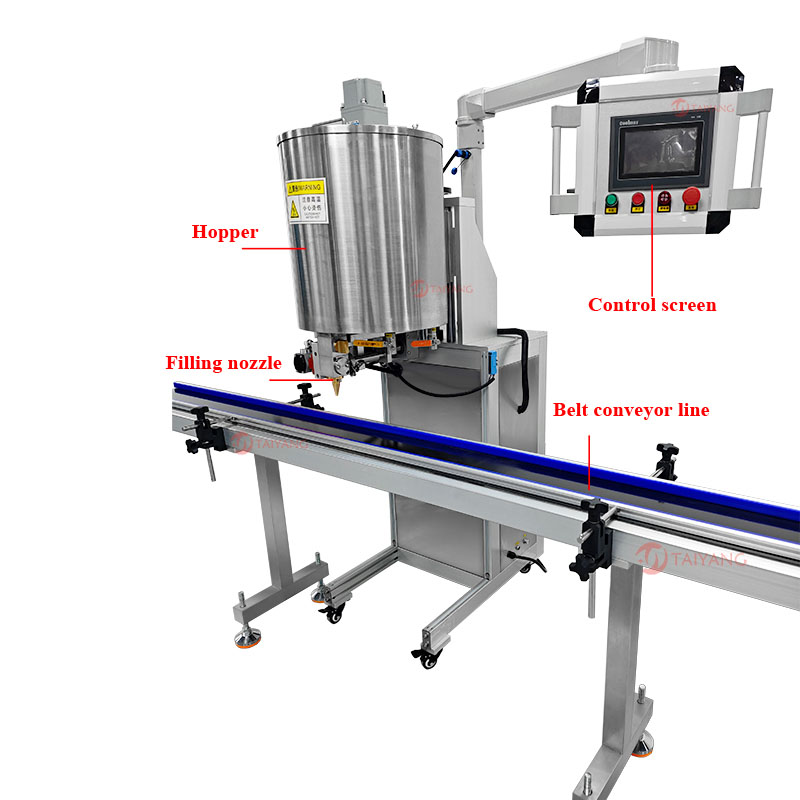

Easy to operate, freely adjust filling capacity.Can be customized to add two filling nozzles

The use of inter layer heating increases the heating area of the raw materials and effectively controls the heating temperature of the raw materials.

Hopper anti-collision strips can effectively increase equipment safety.All equipment are equipped with safety helmets to prevent the heated raw materials from spraying out.
