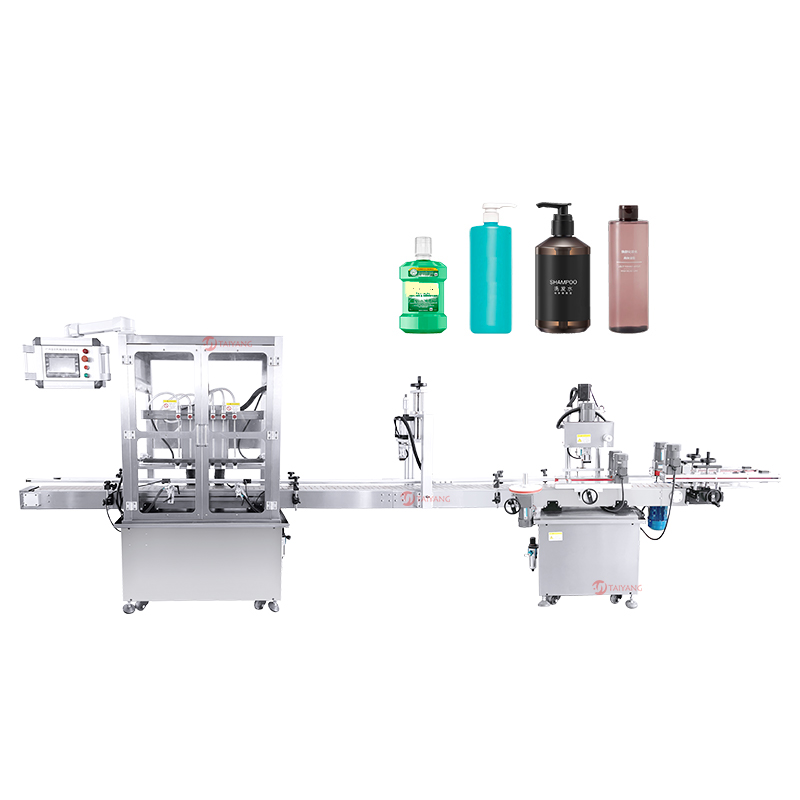

Six-head Liquid Filling and Capping Machine

This Taiyang six-head liquid filling and capping machine has six filling heads, which can achieve efficient filling operations,especially suitable for filling liquid water, high foaming solvents.Taiyang six-head liquid filling and capping machine adopts a magnetic pump lifting filling method and is driven by a servo motor. It has the characteristics of fast response speed and high precision. This Taiyang six-head liquid filling and capping machine can flexibly control the filling process, ensure the stability and accuracy of the filling process, and can accurately fill containers of different capacity specifications. In the capping part, it works closely with the filling process.
This Taiyang six-head liquid filling and capping machine is mainly suitable for various water-based products such as cosmetics, food industry, and high-foaming water solvents, such as shampoo, toner, lotion, cleaning liquid, etc. Whether it is small-scale production or large-scale assembly line operation, it can perform excellent performance. This Taiyang six-head liquid filling and capping machine is an ideal equipment choice for the production of water-based products. It can be integrated with the capping machine and labeling machine on the bottling line. The Taiyang machinery has complete functions and has the advantage of intelligent control.

Technical Parameter

Performance And Features

1.Adopt volumetric piston pump, pneumatic control check valve to filling various kinds of liquid.Can be customized according to production requirements, adding or reducing filling heads，4/6/8/10 heads or more.
2.High filling accuracy, ±0.1% error, 6 filling heads are independently controlled and the capacity can be adjusted separately.
3.Auto shut on/off filling nozzle, prevent drop while filling.
4.Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts.
5.Frequency speed control, no bottle no fill intelligence.
6.Intelligent operation panel make the working data visual,this help to control the machine better.and it is with stop button,can protect the machine from damage and keep the operator safe during working.
8.PLC controlled , touch screen operation, integrated cap capping (automatic cap sorting/cap feeding can be option)
9.Automatic in feed cap and bottle position-setting and orientation, adjustable torque control.

Application

This Taiyang six-head liquid filling and capping machine is widely used in different kinds of product filling, such as, cosmetics, food industry, high foaming water solvent and other products filling. For example, toner, makeup remover, hair wash, mouthwash, essential oil, cleaners, etc.

Product details

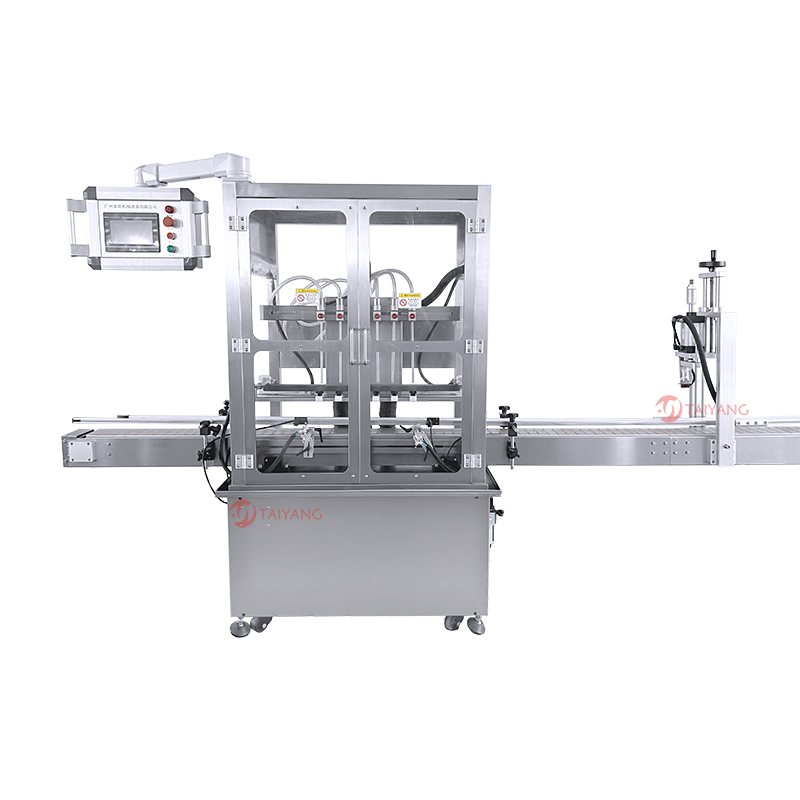

The filling heads sink into the container to the very bottom, as the product is filled, the filling heads rise above the liquid mirror, i.e. filling occurs without immersion of the filling heads into the product..

Can be customized according to production requirements, adding or reducing filling heads，4/6/8/10 heads or more.

The flapping device can initially fix the lid, and can be quickly removed if this device is not needed.

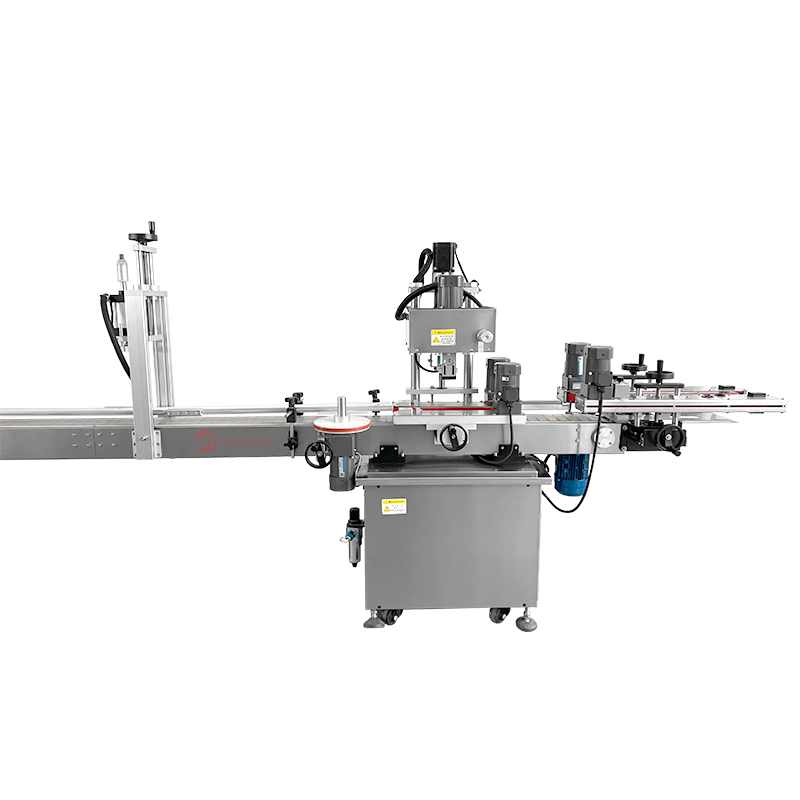

The capping structure is consist of 4 rubber wheels, this kind of capping method is

suitable for various kinds of caps includes spray bottle caps,pump head bottle caps,dropper bottle caps etc.It widens application range and improves working efficiency.Ensure that each cap can be tightened, with pump head positioning function and adjustable capping torque.

The chain conveyor belt is with large loading capacity,it can transport bottles faster and stably The guard rail for conveyor belt can be adjusted according to bottle diameter.
